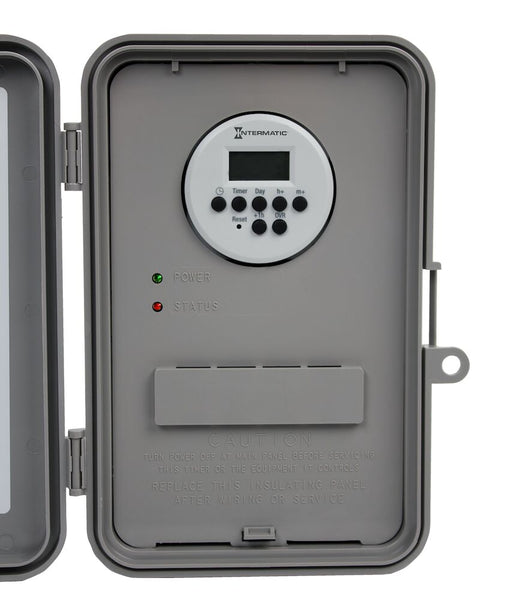

The GM40AVE-RD89 is a universal, electronic time switch designed for general purpose residential and commercial applications. The robust 40 A time control automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120 VAC and 277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time control features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).
- Heavy-duty 40 A contact rating
- Automatically adjusts voltages between 120-277 VAC
- 24-Hour/7-day flexible scheduling
- Power and status LED indicators
- DPDT switching configuration (2 NO and 2 NC Contacts)
- 14 Setpoint programs
- Manual override with load status indication
- Self-recharging battery with back up protection up to 2500 hours
- Type 3R outdoor enclosure with lockable hasp
- To-the-minute accuracy
-
Aeration
-
Air Movement & Ventilation
-
Generator Exercising
-
Refrigeration Merchandiser
-
Septic Treatment
| Operation Mode | 24 hour, 7 day | Wiring Option | Screw box lug |
| Backup Protection Time | 2500 Hours | Backup Type | Battery |
| Battery Type | NiMh | CA Prop 65 Message | This product is in compliance with Prop65 |
| California Proposition 65 | None | Color | Gray |
| Country of Origin (Intermatic) | CHINA | Daylight Savings Adjustment | Manual |
| Electrical Life | 50,000 operations at full load | Electronic Ballast Load Ratings NC Ranges | 10 A, 277 VAC, 50/60 Hz |
| Electronic Ballast Load Ratings NO Ranges | 30 A, 120 VAC, 50/60 Hz; 20 A, 277 VAC, 50/60 Hz | Enclosure Type | Outdoor type 3R plastic |
| Has Finger-Safe Terminals | Yes | Has Manual Override Status Indication | Yes |
| Minimum ON/OFF Times | 1 min | Motor Load Ratings NC Ranges | 1 HP, 12 FLA, 30 LRA @ 120 VAC, 50/60 Hz; 2 HP, 10 FLA, 30 LRA @ 240 VAC, 50/60 Hz |
| Motor Load Ratings NO Ranges | 1 HP, 16 FLA, 96 LRA @ 120 VAC, 50/60 Hz; 2 HP, 12 FLA, 52 LRA @ 208-277 VAC, 50/60 Hz | Number Of Circuits | 2 |
| ON/OFF Operations | 98 | Other Certifications and Compatibilities | Green Energy, Title 20 |
| Resistive (NC) Range(s) | 30 A, 120-277 VAC, 50/60 Hz | Resistive (NO) Range(s) | 40 A, 120-277 VAC, 50/60 Hz |
| RoHS Certification | Y | Switch Type | DPDT |
| Tungsten (NC) Load Ratings | 2 A, 120 VAC, 50 Hz, 2 A, 120 VAC, 60 Hz | Tungsten (NO) Load Ratings | 15 A, 120 VAC, 50 Hz, 15 A, 120 VAC, 60 Hz |
| Tungsten (NO) Range(s) | 15 A, 120 VAC, 50/60 Hz | Tungsten Load Ratings NC Ranges | 2 A, 120 VAC, 50/60 Hz |
| UL Certification | cULus | Voltage Selection Type | Auto Voltage |
| Warranty Period | 1-Year limited | Wire Size Max | #8 AWG |
| Operating Temperature Max (°C) | 55 | Operating Temperature Max (°F) | 131 |
| Operating Temperature Min (°C) | -15 | Operating Temperature Min (°F) | 5 |
| Product Depth (in) | 3 | Product Depth (mm) | 76.2 |
| Product Height (in) | 8.875 | Product Height (mm) | 225.425 |
| Product Width (in) | 6.61 | Product Width (mm) | 167.9 |
| Unit Carton Height (in) | 9.28 | Unit Carton Length (in) | 6.91 |
| Unit Carton Weight (lb) | 1.83 | Unit Carton Width (in) | 3.16 |
| Units Per Pallet | 216 |
